Please, Before ordering, ask for availability.

Thanks.

This products is sale only with pick up in Switzerland.

Image for demonstration purposes only.

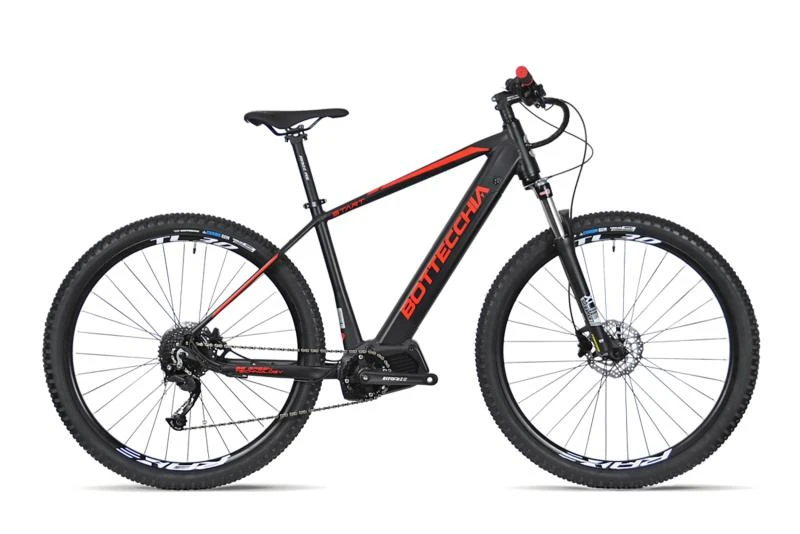

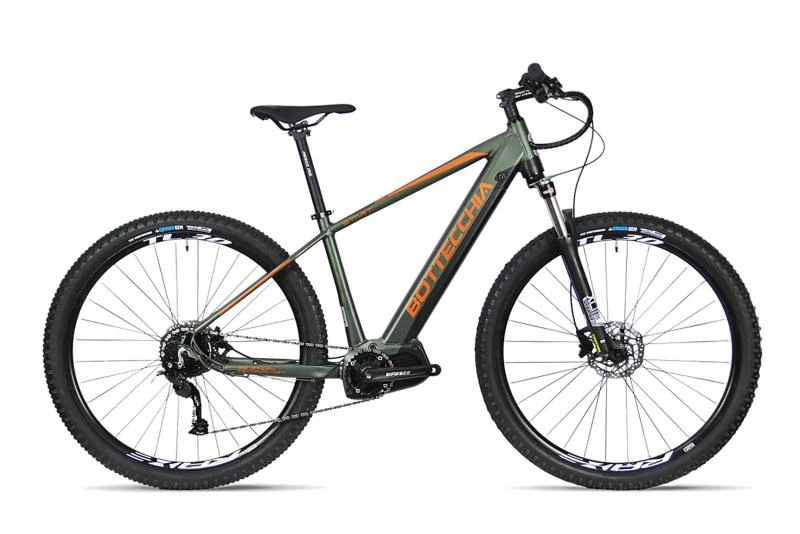

BE32 EVO START is the high performance 29 ”x 2.30 front suspended E-MTB in aluminum.

29-inch aluminum frame with 500 Wh Panasonic Sanyo battery perfectly integrated into the down tube, compact and with easy side extraction. Clean lines and compact design make it very similar to a muscular mtb.

TECHNICAL DESCRIPTION:

Frame E-MTB 29 Alu Integrated battery

Forcella Suntour XCM 29 RL 100mm

Cambio Shimano ACERA 9s

Motore OLI SPORT 36V 250W

Batteria Sanyo Panasonic/LG 36V 500Wh

Display LCD HIGH VISION OLI

Freni Shimano Disk 200

Cerchi Raxe 29 TL30 Disk-mozzi QR / Raxe 29 Disk TL30 QR hubs

Coperture VEETIRECO MTB 29×2,30

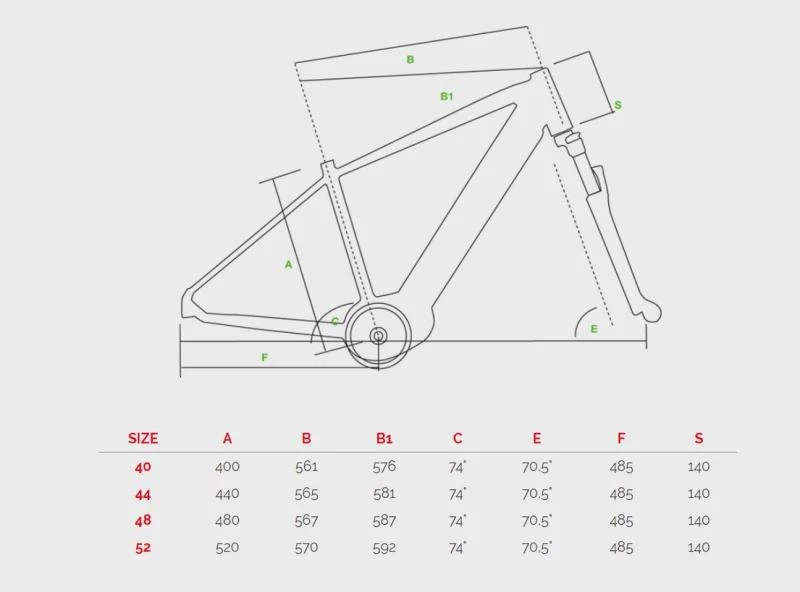

Misure 40 / 44 / 48 / 52

Colors c81 Black red, c11 Grey Black Matt

Weight Kg. 23,000

Autonomia da 50 a 130 km

Cassetta Shimano 11/34 9s

Pedali SI

OLI SPORT

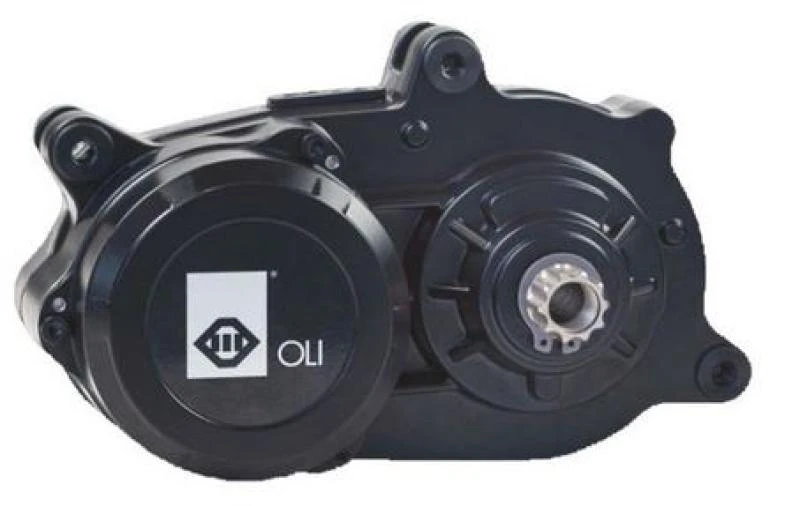

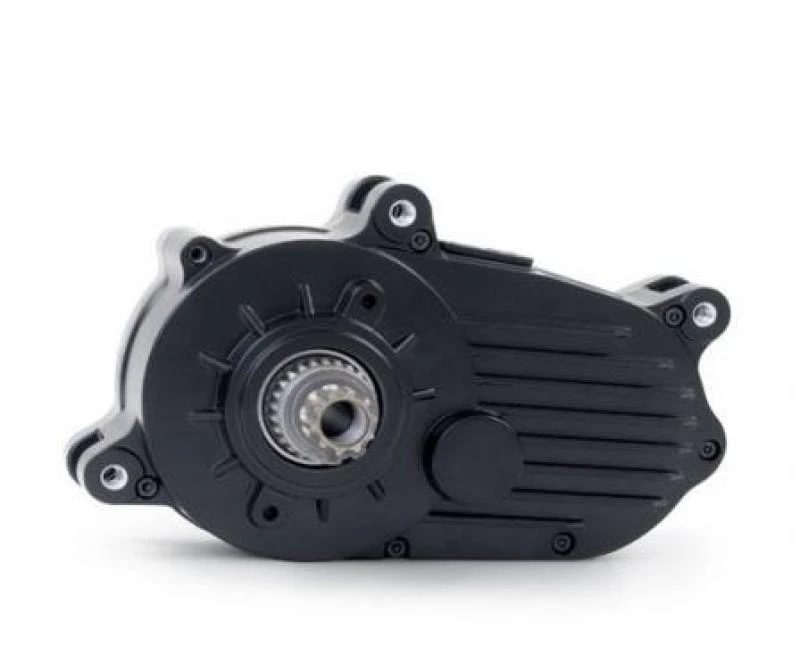

Bottecchia’s new motor, made in Italy, is produced by Oli e-bike Sistem, an Italian company with over 30 years of experience in the electric motor sector. Designed to offer a support capable of facing the heaviest uses in the MTB field, with the nominal power of 250 Watts it offers a torque of 85Nm for the mountain/sport version and 58Nm for the urban/city version which, combined with the silent operation, make this extremely powerful motor a top of the range to support the cyclist up to 400% of the force used.

Designed with the latest generation of extremely sensitive hi-tech effort sensor, it is activated by simply pressing the pedal regardless of rotation and according to the pressure exerted on the pedal, the

progressive engine support automatically adapts to the driving situation. This guarantees optimal traction control in all gears and facilitates use by offering power based on the rider’s demand.

Thanks to the 85 Nm of power, the drive unit supports an even wider range of pedaling frequencies, so that riding is responsive and aggressive, supporting the rider in a natural and dynamic way.

The sophisticated software developed for Bottecchia ensures perfect system integration both for a mountain / sport e-bike concept and for urban / city use.

The mountain/sport version expresses all the power for those who don’t want to have limits. The assistance amazes from the first pedal stroke and adapts perfectly to any path, allowing the user to concentrate on riding, offering unimaginable sensations. With 5 power levels, the system allows you to manage assistance in the best possible way, ensuring optimal energy consumption and exceptional performance.

The software for the urban/city version is programmed for an extremely pleasant fluid and balanced support that ensures all the necessary power with minimum effort, suitable for trekking and city use. In this case, autonomy represents a focal point where our engineers have placed the maximum attention. In fact, with a 500 Wh battery you can travel up to 160 km.

TECHNICAL FEATURES OF OLI SPORT

power 250W

torque 85 Nm

system start only with pedal pressure, no rotation

system power supply 36 V

max speed 25 km/h

sensors cadence, pressure, speed and temperature

power levels 5

sprokets connection BCD 104 30/44 T

standard pivot ISIS drive

q-factor 178 mm

chain guard or chain guide proprietary system, direct connection to the motor

weight 3,3 kg

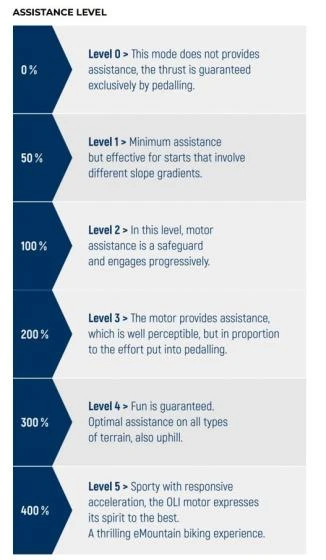

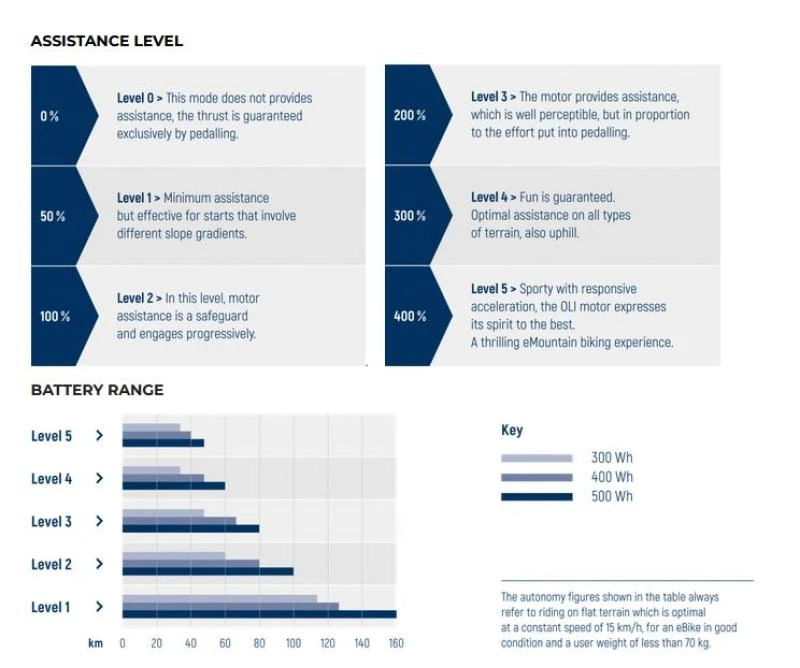

ASSISTANCE LEVEL

BATTERY RANGE
