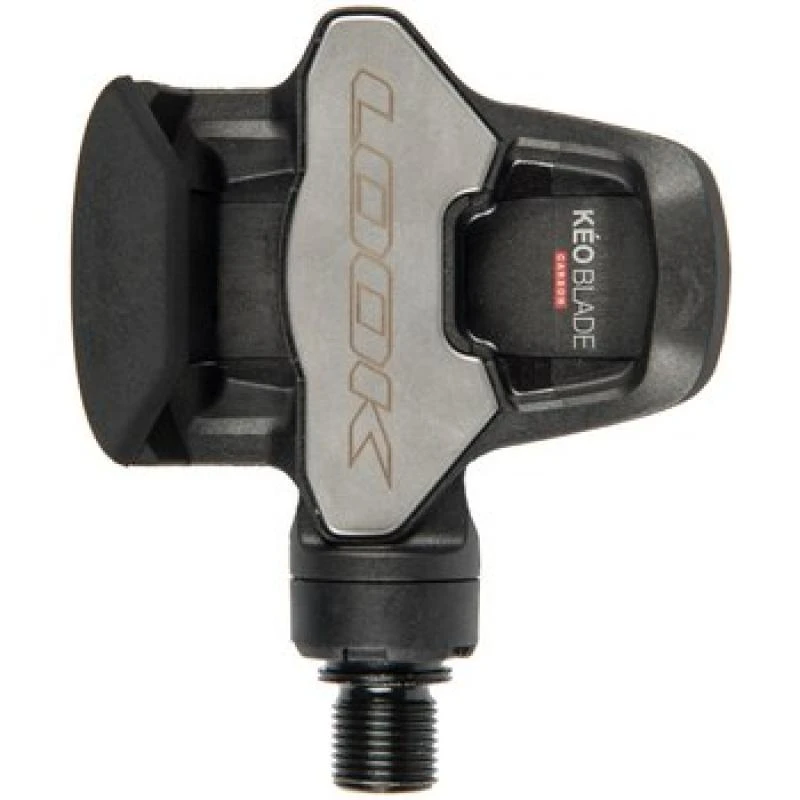

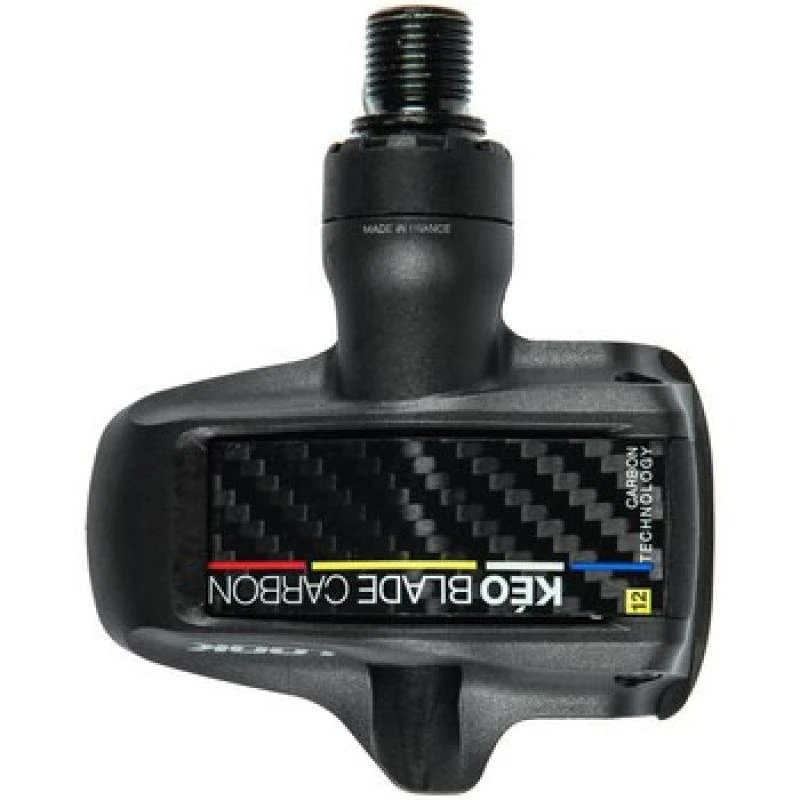

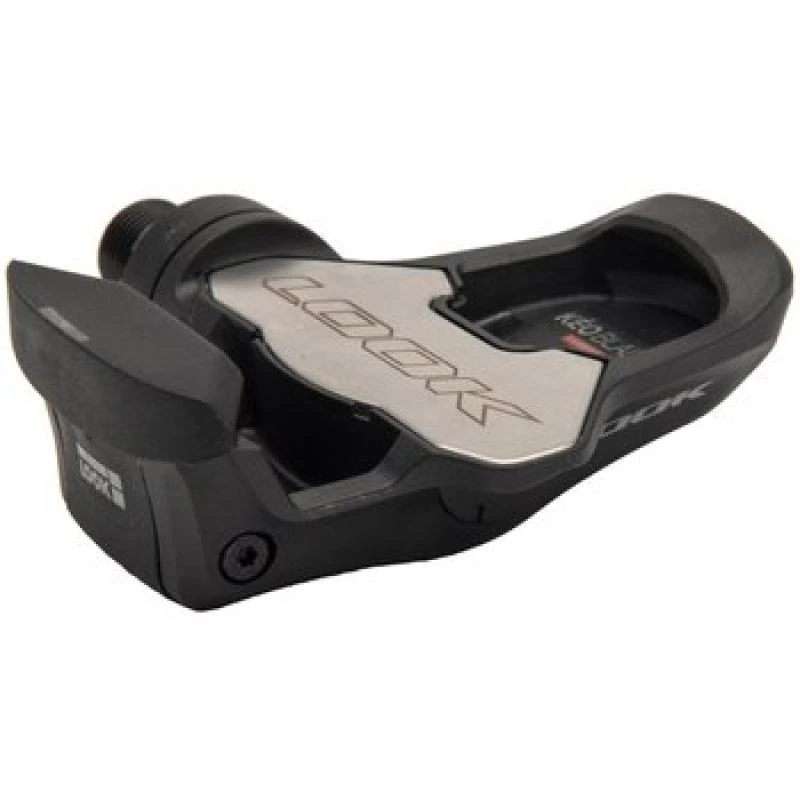

Look KEO Blade Carbon

Before ordering, ask for availability.

Thank you.

The new KEO BLADE CARBON is designed to win and improve the experience with spring blade technology on click pedals. This new version is the result of many years of experience in technical development at LOOK’s factory and continuous improvements in daily contact with the biggest cycling champions.

The new KEO BLADE CARBON is light, aerodynamic, powerful and has all the advantages you need to improve your performance and optimize it to win. That’s why many cycling champions unanimously chose the KEO BLADE CARBON as their pedal of choice and used it as a weapon to achieve their greatest victories.

The KEO BLADE CARBON therefore benefits from the best weight/performance ratio in its category.

The spring leaf is fully integrated into the new design, which guarantees unmatched aerodynamics. The Blade Carbon with body and spring leaf made of carbon is available as version Ti (with titanium axle) and a weight of only 95 g per pedal or as version Cr (axle made of chromoly +) with 110 g per pedal. It is available in three release hardnesses: 12,16 and 20 Nm.

Blade technology applied to the Kéo Blade: for new clip-in/clip-out sensations and an aerodynamic profile. A large and wide platform (400 mm² / 60 mm) ensures excellent pedaling stability and good power transfer. New spindle system providing reduced platform height (14 mm).

Details of Look Kéo Blade

Composite material blade

The Kéo Blade is made of injection-molded composite fiberglass material providing cleaner engagement than a Kéo 2 Max pedal. Two blade versions are offered for 2 different tension levels: version 8 and version 12. Integrating the blade into the pedal body gives the Kéo Blade and aerodynamic profile for optimal air flow.

Very large pedal platform area

With a 400 mm² stainless steel platform, the Kéo Blade is providing excellent stability and very good pedaling efficiency. This efficiency is also made possible by permanent cleat-stop contact: the shape of the stops at the rear of the pedal has been designed to fit the shape of the rear of the Kéo cleats.

Top quality spindle system

The spindle system used on the Kéo Blade is the same as that used on the Kéo 2 Max Blade: 2 ball bearings and one needle bearing thus ensuring high product reliability, besides passing tests in excess of standards that Look commits to having its products subjected to 2 million cycles at 100 rpm with a 90 kg load on the centre of the pedal and eccentric rotation (the standard requiring 100,000 centred rotation cycles with a 65 kg load). This is the equivalent of a 1,700 watt sprint by Mark Cavendish at 100 rpm for 333 hours!
