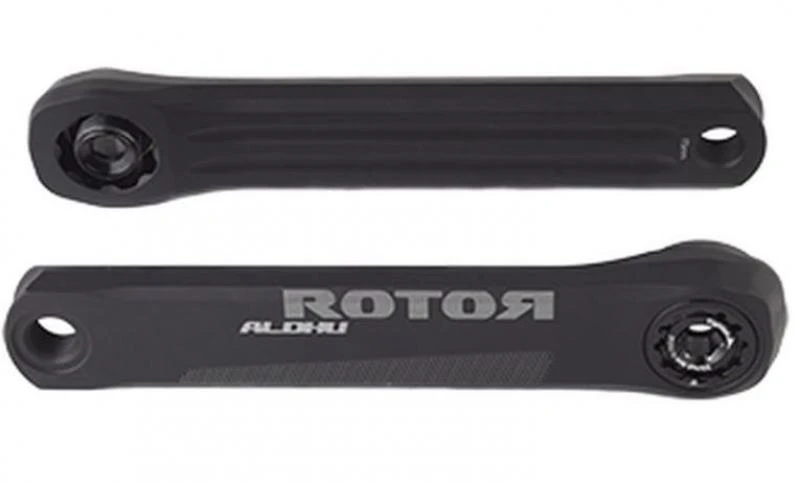

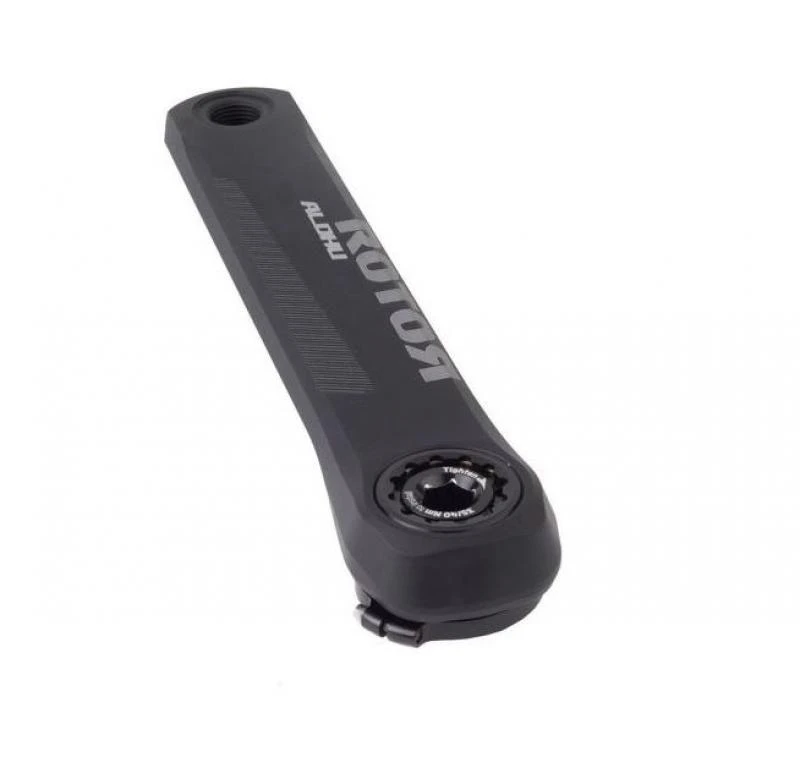

Rotor Bike Components Rotor ALDHU 30 Cranks

Original price was: $225.00.Current price is: $98.99.

Hassle-Free Payments

Reliable Payments for Reliable Shopping

Quality at its Finest

Service with a smile, always online.

With the Aldhu or Vegast, Rotor has developed a racing bike crank system that can be freely configured and assembled without special tools. Thanks to the Direct Mount (DM) system, sheets can be exchanged in a matter of minutes. Whether with round or oval chainrings from Rotor, everything is possible and available in many variants. The Aldhu Direct Mount System enables the fine adjustment of oval chainrings in 1-degree steps and thus an incomparable individualization to personal requirements.

Difference between Aldhu and Vegast:

• Weight: Aldhu is lighter

• Price: Vegast is cheaper

• Crank length: Aldhu from 150 mm, Vegast from 170 mm

• Material and manufacture

Scope of delivery:

• Rotor Aldhu30 crank arm left and right

Not included

• Road 30mm standard or offset axle

• Axis / Spider Track 30 mm

• Direct Mount (DM) chainrings, respectively Direct Mount (DM) Spider (110×4) and chainrings (110×4)

• Track chainrings

• Spacer Kit 30mm standard or offset

• bottom bracket

Technical specifications:

• Weight: 347.8 g (175mm without chainrings and axle)

• Sizes: 150/155/160/165/170 / 172.5 / 175

• Q-Factor: 148 mm / 153 mm (depending on the selected axis)

• Chain line: 43.5 mm / 46 mm (depending on the selected axis)

• Material: 7055 aluminum

• Compatibility: BSA / ITA / BB30 / PF30 / BBRight / BB386 / BB86
