Shimano GRX RX810 Crankset 2x11s

Available Now

Delivery Time : 5 work days

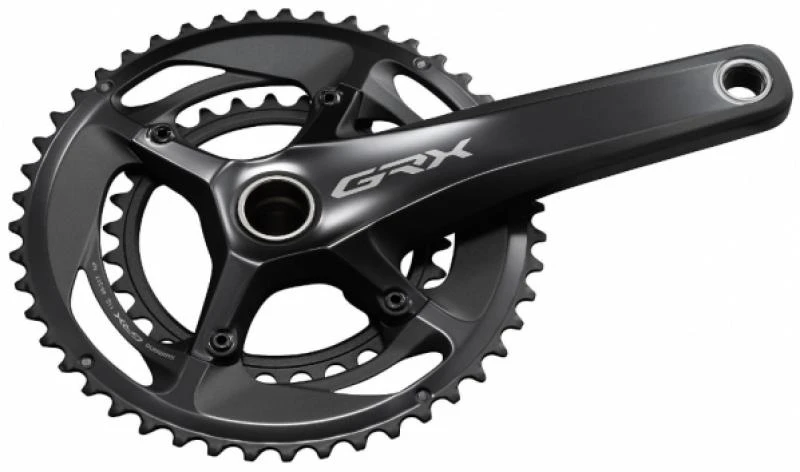

Shimano GRX RX810 Crankset 2×11-speed – 48/31 Teeth

Shimano’s GRX cranks are designed to handle a wide variety of terrain and riding styles and feature a 2.5 mm wider chainline for more freedom in frame design and the use of wider tires.

The Hollowtech II GRX FC-RX810-2 crankset relies on a 2×11-speed drivetrain concept and offers the optimum gearing for every terrain and riding style thanks to Shimano’s wide range of cassettes and sprocket ratios. The aluminium crank with a 46.9 mm chainline is characterized by the widest gradation of all Shimano components to date which is achieved by a 48 to 31 teeth chainring ratio. The 4-arm chainrings – made of aluminium as well – are compatible to HG-EV and HG-X11 chains.

Material: crank arms, chainrings: aluminium (anodized)

axle: steel

Weight: approx. 710 gram (170 mm | manufacturer’s specs)

Included in delivery: without bottom bracket cups

Crank length: 170 ||| 172,5 ||| 175

Chainwheel, number of teeth: 48/31

Fitting for derailleur: 11-speed

Type of chain: HG-EV 11-speed, HG-X11

Chainline: 46.9

Axle profile: 24mm Hollow Shaft

Recommended Bottom Bracket: SM-BBR60 (thread type)

SM-BB72 (Pressfit)

Bolt Circle in mm: 110 mm (outer chainring)

 80 mm (inner chainring)

Q-Factor: 151mm
