Tatze Pedals Two-Face CrMo4

Before ordering, please contact us. Thank you

Delivey time: 2-3 work days

Paw Pedals Two-Face Cr-Mo | black

Is your bike uphill and downhill awesome?

Then your pedal should master both perfectly!

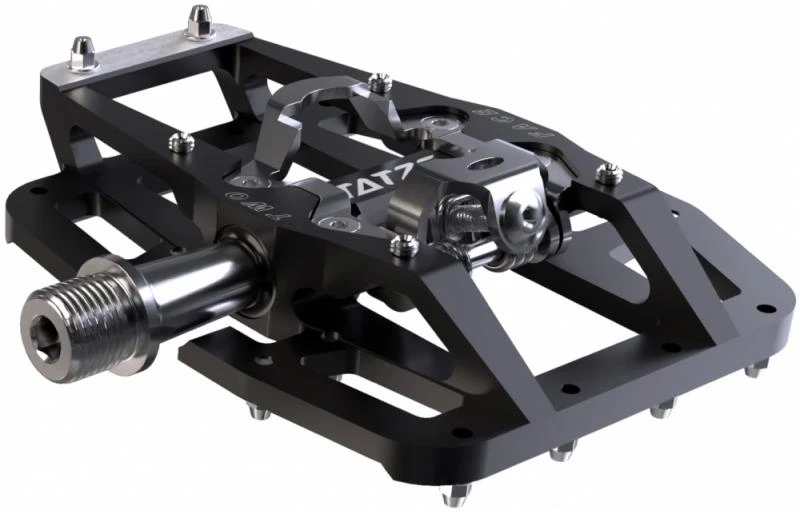

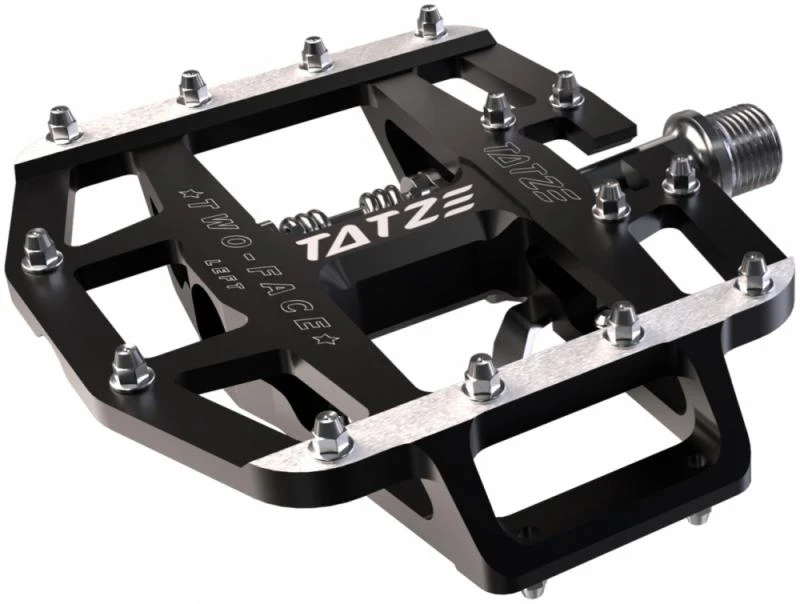

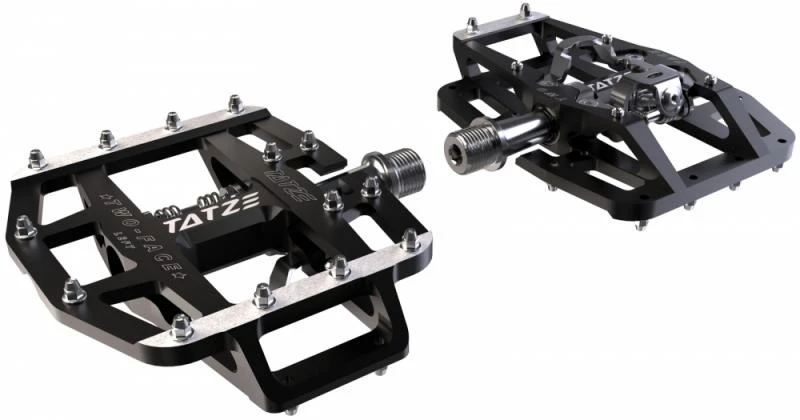

The Tatze Two-Face Pedal is an extremely potent folding pedal and an efficient click pedal at the same time. The 14 PINs with targeted cant on the flat side ensure enormous grip, but also on the click side, 6 height-adjustable PINs create a particularly rich connection between pedal and shoe.

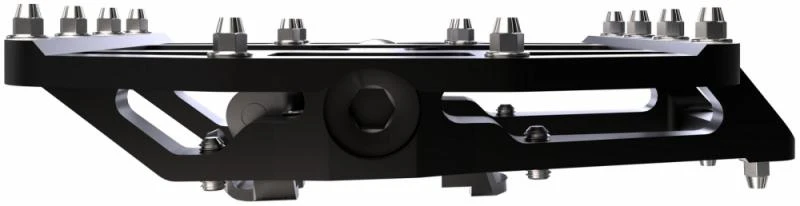

For an optimized ground clearance, the flat to the click side is rotated by 2.5 °, which increases the ground clearance at the crucial points by 5 mm.

A defined choice of side is particularly important with a combination pedal. With the two-face pedal, the side is retained after relief, through targeted resistance in the bearing , so that the same side / function is available again when you re-enter.

Through the selection of the highest quality materials and manufacturing processes, the two-face is extremely resistant and durable.

The most important specifications at a glance:

– Flat side with 14 PINs (W: 100mm L: 105mm H: 18.5mm)

– Click page with 6 PINs (W: 60mm L: 98mm H: 18.5mm)

– Pedal body: Alu 6061-T6

– axle : tempered and coated Cr-Mo

– Weight: 444g

– bearing : plain and roller bearings

– SPD compatible

– Developed and tested in Tyrol / Austria

Technical specifications:

intended use : enduro, freeride

axle : tempered and coated Cr-Mo

Pedal body: Alu 6061-T6

Pedal wing: steel

bearing : plain and roller bearings

Sealing: rubbed sealed

Pins: flat side with 14 PINs, click side with 6 PINs

Spring: steel

Color: Black

Release angle: 15 °

Freedom of movement: 5 °

Cleats: steel, forged

Max. Driver weight: no weight limit

Weight: 444g (manufacturer information)

Scope of delivery: 1 pair of TATZE pedals Two-Face Cr-Mo | black
