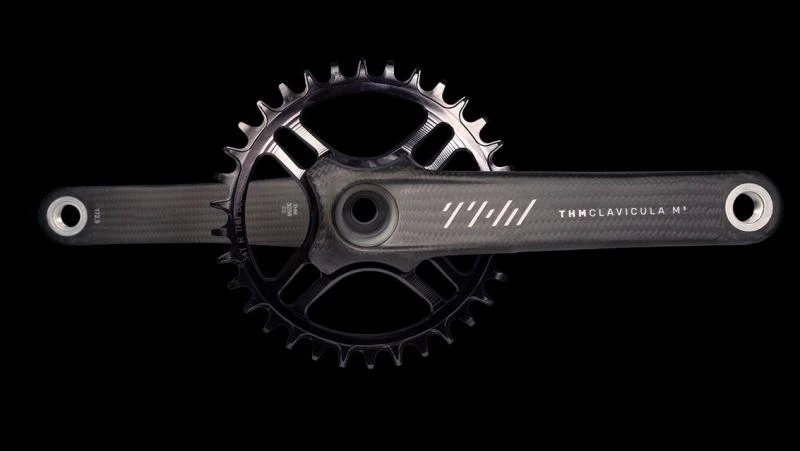

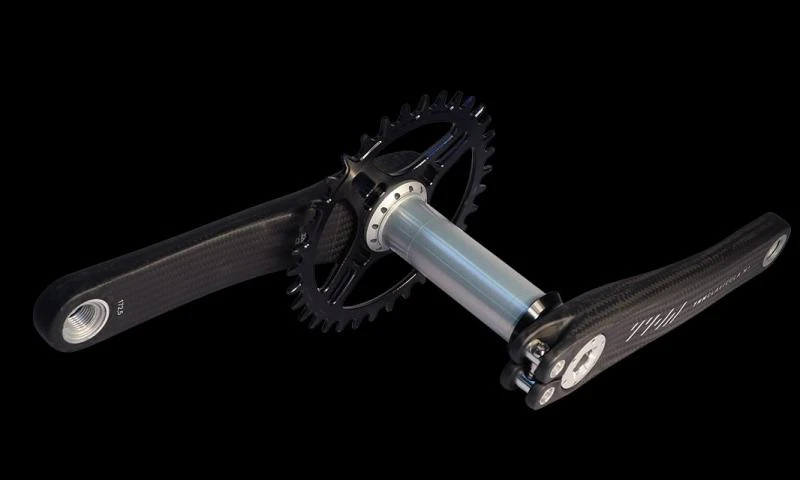

CLAVICULA M3 MTB

Clavicula M³ is our modular, full-carbon crank for mountain bikes. An interchangeable carbon spider is key to its versatility — by changing the spider, you can fit double ring pairs (120/80 BCD or 104/64 BCD), classic triple rings (104/64 BCD), or XX1 single (76 BCD).

We also offer a 120/80 BCD spider for the SRM power meter, making Clavicula M³ the world’s lightest offroad SRM crankset at only 770 g, less than many other cranks without power measurement.

Weight of bare crankset is 340 g, and stiffness is second only to Clavicula SE. All common bottom-bracket types are supported including BSA, BB30, PF30, Shimano Pressfit (with adaptor), and BBright™.

Available also with the SRM PowerMeter.

TECHNICAL INFO

Weight Approx. 340 g for cranksystem (not including spider, chain rings or bearings

Spider options:

120/80 bcd double spider 48 g,

104/64 bcd triple spider 42 g,

104/64 double spider 39 g,

XX1 compatible single 31 g,

with SRM system and single speed chainring 540 g

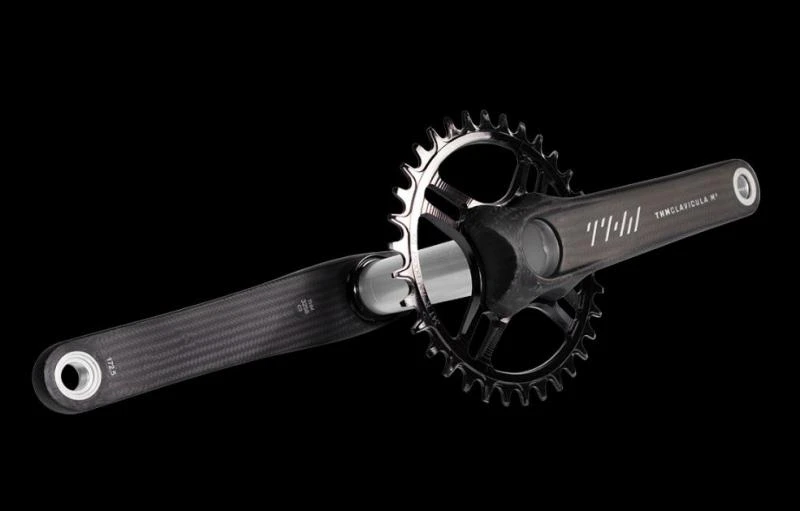

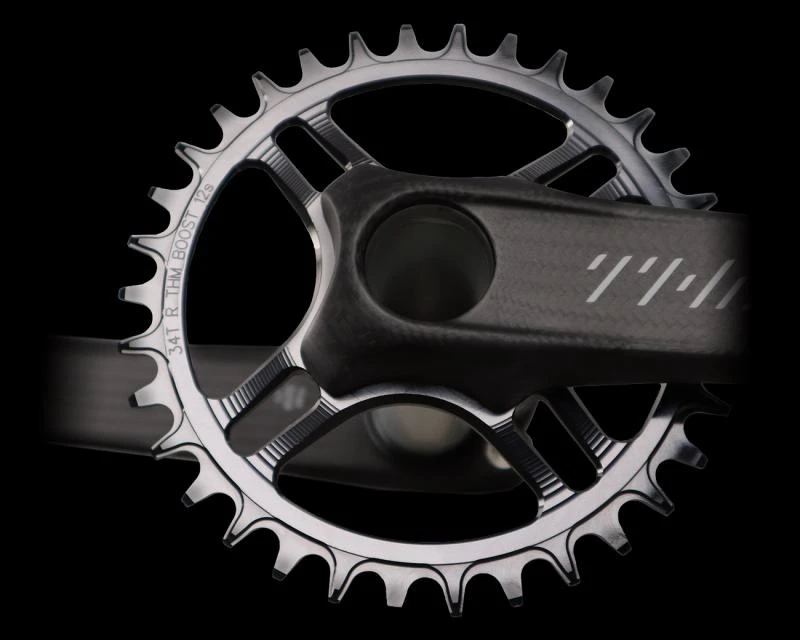

NEW: Direct Mount Chainring Standard and Boost (49/52mm)

Total Weigt: 410g (with 34T Boost 12s)

Mounting : We supply bearings for all common bottom brackets

(e.g. BSA, BB30, Pressfit30, adaption for Shimano Pressfit, BBright™)

Q-Factor : 167 mm

Chainline : 49,5 mm (double), 50 mm (triple) and 49 mm (single)

Inner width of the cranks . 137 mm (We recommend a minimum clearance of 3 mm to the chainstays)

Available lengths . 170, 172,5 or 175 mm

Chainrings . Garbaruk, Praxis Works

Max. permissible total weight (rider+bicycle+luggage) : 120 kg (265 lb)
